Profiles and Devices

• Defining devices for the Gazebo system
• Injecting the device into the arm control network

One can partition a component network into three categories:

• source of data
• sinks of data
• transformation of data

Within a robotic system, the source and sinks of data are the sensors and actuators of the robot itself. What makes them unique when building the system's component network is that they are indeed unique.

While the data processing components can easily be duplicated - an image preprocessing component can be instantiated multiple times to process multiple streams of data - one cannot duplicate devices. They are bound to hardware, and we still don't know how to grow new devices on the robot on-demand.

This difference shows up in the Syskit modelling system. Devices are defined separately within a robot interface. We will now see how this is done, and how we can use these devices within our arm control network, binding the simulated arm with the control network.

Defining devices for the Gazebo system

A robot definition is created within a Syskit profile. Profiles are the models that bind network definitions (compositions) with devices and other compositions. It's also where the robot definition happens.
By convention, one usually creates a per-robot Base profile that contains the robot definition. Let's do that now.

$ syskit gen profile gazebo/base
      create  models/profiles/gazebo
      create  models/profiles/gazebo/base.rb
      create  test/profiles/gazebo
      create  test/profiles/gazebo/test_base.rb

Note how the addition of -rgazebo to the command line ensured that the model is generated within the gazebo/ subdirectory of the profiles/ folder and within the Gazebo namespace of Profiles. This is a general convention (e.g. compositions specific to our gazebo robot would be in compositions/gazebo/ and within the Compositions::Gazebo namespace.

Now, here's the catch: we will actually not really learn to define devices, since the mapping from the simulation model to devices is done automatically from the robot model. One only has to declare the robot model in the Base profile we just created:

module SyskitBasics
    module Profiles
        module Gazebo
            profile 'Base' do
                use_gazebo_model 'model://ur10',
                    prefix_device_with_name: true
                use_sdf_world
            end
        end
    end
end

Note the prefix_device_with_name argument is here for backward compatibility reasons. Syskit will issue a deprecation warning if you forget it.

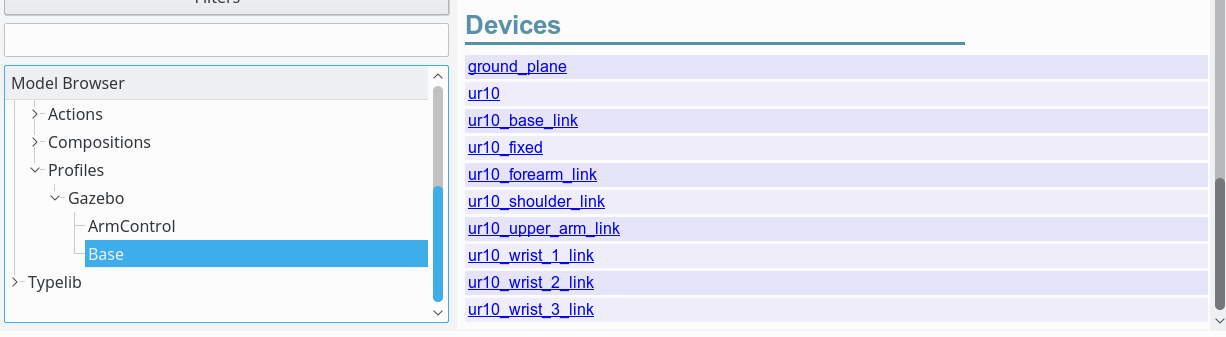

And have a look at the generated devices with syskit ide -rgazebo models/profiles/gazebo/base.rb:

One can see that there is one device definition per link in the model, and one for the model itself. Let's click on the model and have a look at the Dataflow section. Enable both "Show all ports" and "Show task info" to get port information .

Injecting the device into the arm control network

As said, profiles is where this kind of injection is done. But let's keep Base for really low-level stuff like devices. Let's create an ArmControl profile to integrate the arm control stuff.

syskit gen profile gazebo/arm_control

We need to require the Base profile and ArmCartesianControlWdls composition definition. Then, define the cartesian and joint position controls for our UR10 robot in gazebo by injecting the UR10 device as the 'arm' child of the composition.

The model name given to define in a profile is made out of a demeter chain. In Ruby, this is usually done by breaking each method call with a newline, leaving a trailing dot on the previous line. Don't forget these dots !

require 'syskit_basics/models/profiles/gazebo/base'
require 'syskit_basics/models/compositions/arm_cartesian_constant_control_wdls'
require 'syskit_basics/models/compositions/joint_position_constant_control'

module SyskitBasics
    module Profiles
        module Gazebo
            profile 'ArmControl' do
                define 'arm_cartesian_constant_control',
                    Compositions::ArmCartesianConstantControlWdls.
                        use(Base.ur10_dev)
                define 'arm_joint_position_constant_control',
                    Compositions::JointPositionConstantControl.
                        use(Base.ur10_dev)
            end
        end
    end
end

As we mentioned when we defined it, the joint position constant control has been defined with the goal of providing a sane default position. Let's make sure this is available easily by creating a definition with a default setpoint. This will reuse the arm_joint_position_constant_control definition, which is accessed with the _def suffix. Usable joint positions can be found using the rock-roboviz tool:

$ rock-roboviz model://ur10

require 'syskit_basics/models/profiles/gazebo/base'
require 'syskit_basics/models/compositions/arm_cartesian_constant_control_wdls'
require 'syskit_basics/models/compositions/joint_position_constant_control'

module SyskitBasics
    module Profiles
        module Gazebo
            UR10_SAFE_POSITION = Hash[
                'ur10::shoulder_pan'  => 0,
                'ur10::shoulder_lift' => -Math::PI/2,
                'ur10::elbow'         => Math::PI/2,
                'ur10::wrist_1'       => 0,
                'ur10::wrist_2'       => 0,
                'ur10::wrist_3'       => 0]

            profile 'ArmControl' do
                define 'arm_cartesian_constant_control',
                    Compositions::ArmCartesianConstantControlWdls.
                        use(Base.ur10_dev)
                define 'arm_joint_position_constant_control',
                    Compositions::JointPositionConstantControl.
                        use(Base.ur10_dev)
                define 'arm_safe_position',
                    arm_joint_position_constant_control_def.
                        with_arguments(setpoint: UR10_SAFE_POSITION)
            end
        end
    end
end

A device model is accessed using the device's name with a _dev suffix on the profile it is defined. Here Base.ur10_dev is the ur10 device defined on the robot definition in Base.

Note when building profiles, the require lines as well as the names of models and roles that can be used in the use statement can easily be browsed using the IDE

Let's have a look at the final arm_cartesian_constant_control definition.

Next: we're almost there, just need now to map the components to actual processes, a.k.a. deploy the network
